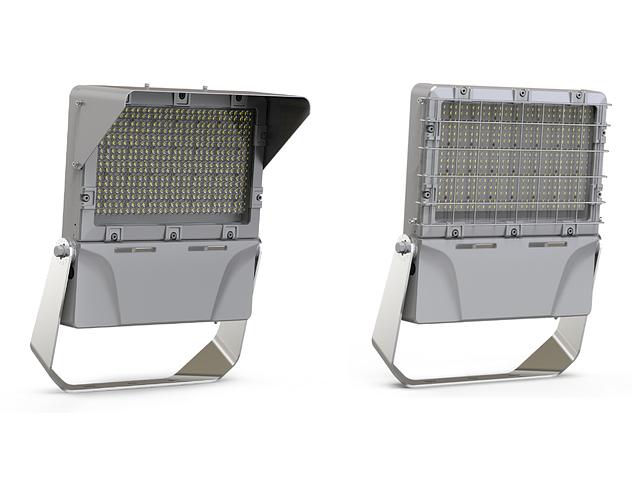

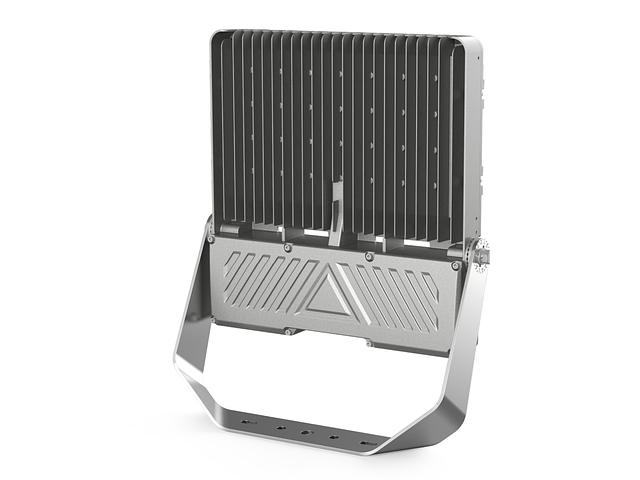

Rocket Series
HA04-3.PNGRocket Series
LED Flood
- Heavy duty die-cast aluminum housing with weatherproof and corrosion-resistant finish
- High-performance LED modules providing uniform floodlight distribution
- Adjustable yoke mount for flexible aiming and installation
- Certified for hazardous locations with UL844 and Class I, Division 2 ratings
- Available with multiple input voltage options including 120V to 277V
- Integral surge protection and thermal management system
CCT
- 2000K
- 2200K
- 2500K
- 2700K
- 3000K
- 3500K
- 4000K
- 4500K
- 5000K
- 5700K
- 6500K
CRI
- 70
- 80
- 90
Color / Finish
- Grey
Dimensions
- H: 22.23 In.
Dimming Protocol
- 1-10 V
Dimming Range
- 10%
EPA Rating
- 0.49
Efficacy
- 150
Lamp Source
- LED
Listings
- CSA
- UL
Lumens
- 22500
- 36000
Materials
- Die-Cast Aluminum
Mounting
- Trunnion
Ratings & Compliance
- Class I Div II
- Class II Div II
- Class III
- IK08
- IP66
- NEMA 4X
Shape
- Square
Voltage
- 100-277 V
- 277-480 V
Warranty
- 5 yr
- 10 yr
Watts
- 150
- 240
