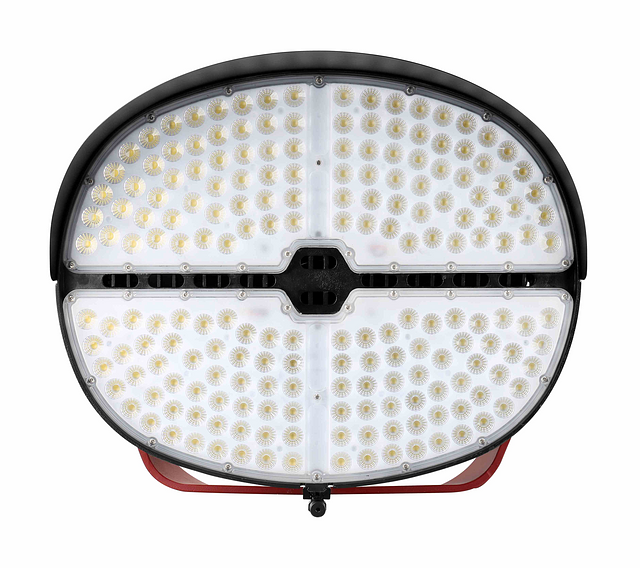

MSL01-Large Size-Black Top Visor-Front.png

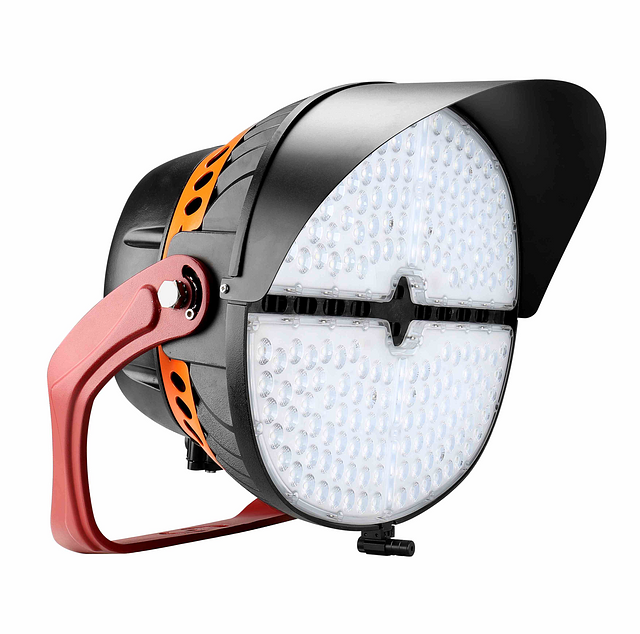

MSL01-Large Size-Black Top Visor-Side 1.png

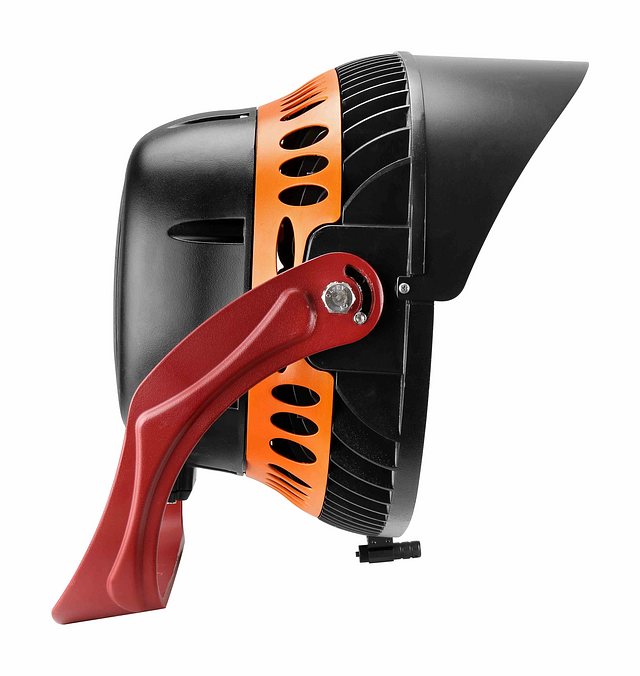

MSL01-Large Size-Black Top Visor-Side 2.png

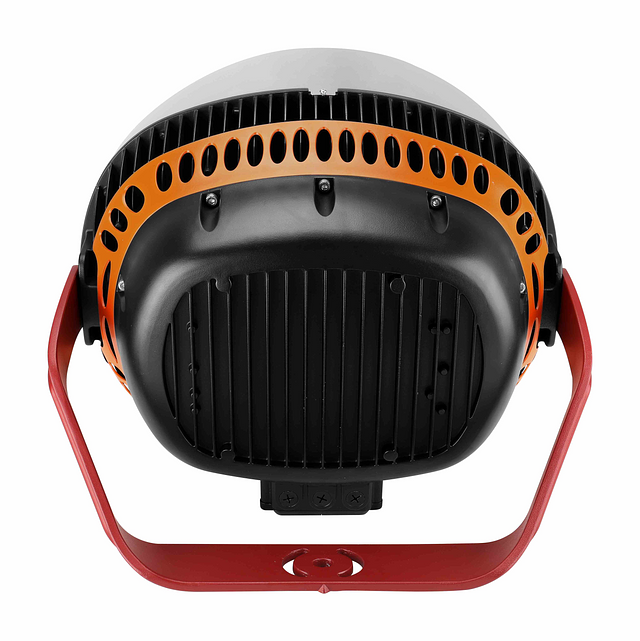

MSL01-Large Size-White Top Visor-Back.png

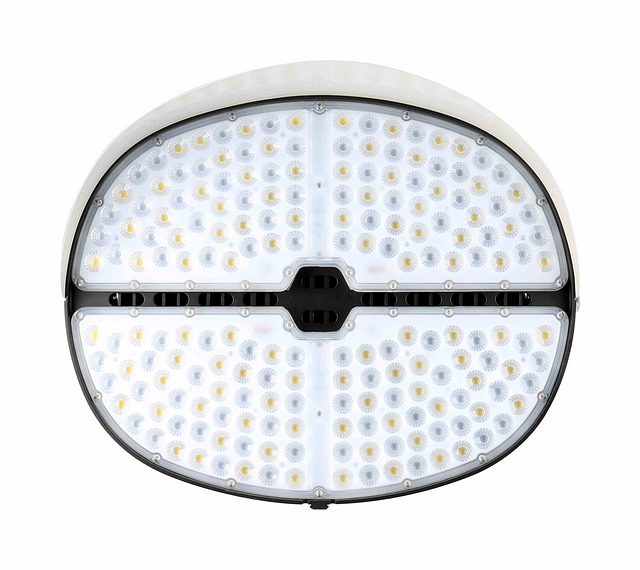

MSL01-Large Size-White Top Visor-Front.png

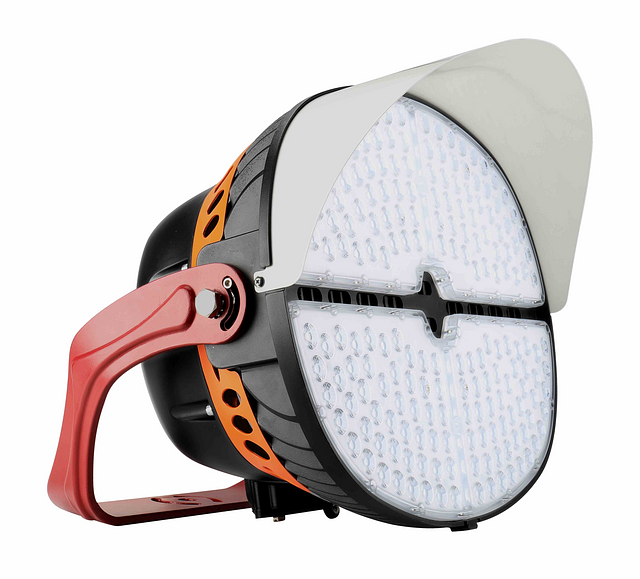

MSL01-Large Size-White Top Visor-Side 1.png

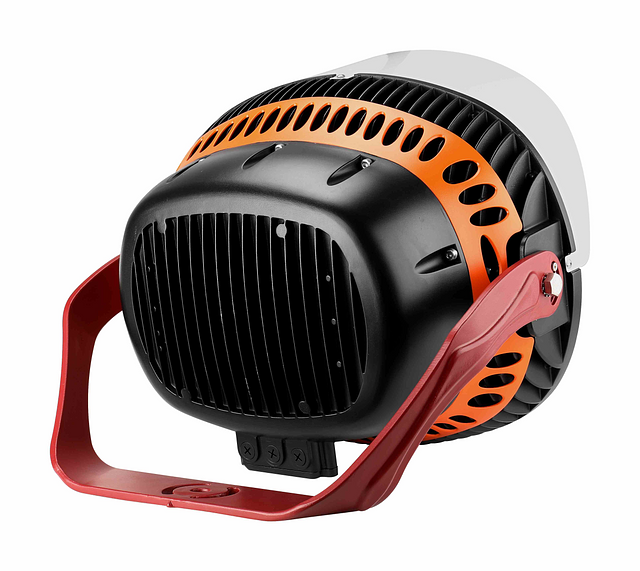

MSL01-Large Size-White Top Visor-SIde 2.png

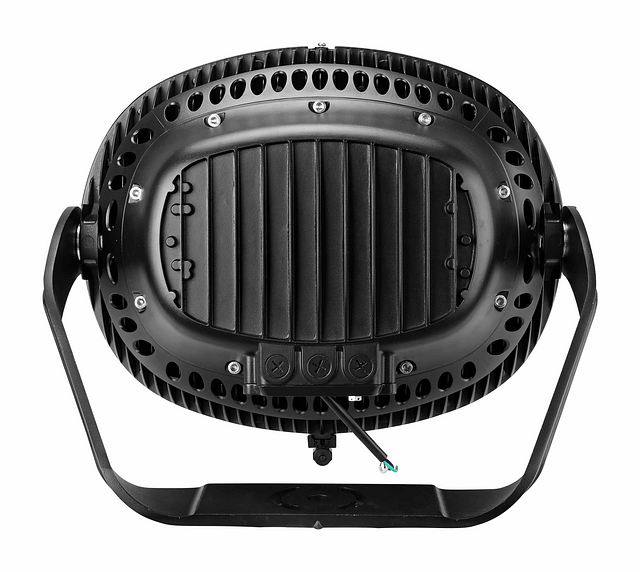

MSL01-Small Size-Black Body&Top Visor-Back.png

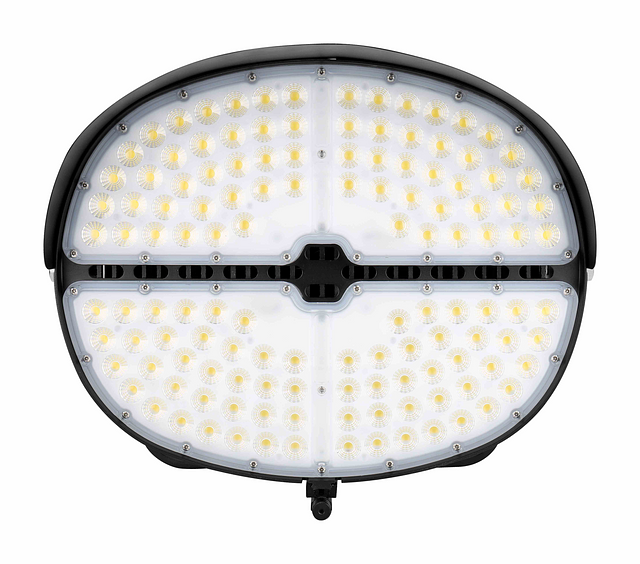

MSL01-Small Size-Black Body&Top Visor-Front.png

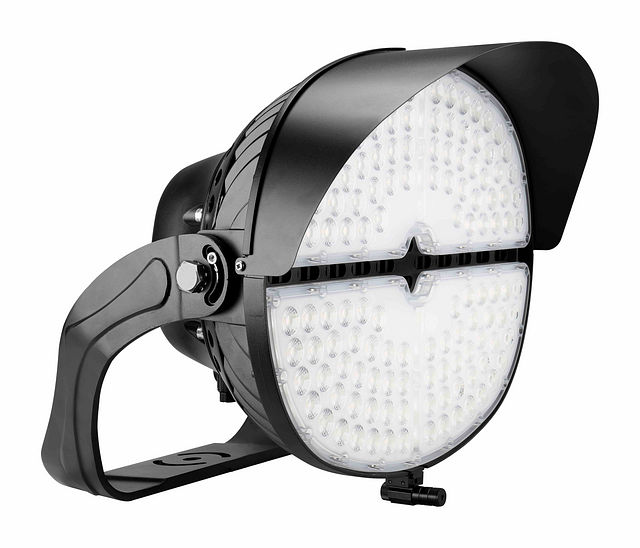

MSL01-Small Size-Black Body&Top Visor-Side 1.png

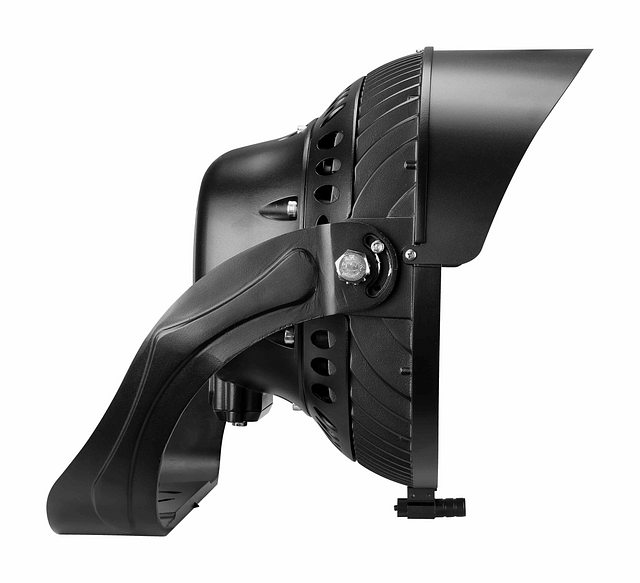

MSL01-Small Size-Black Body&Top Visor-Side 2.png

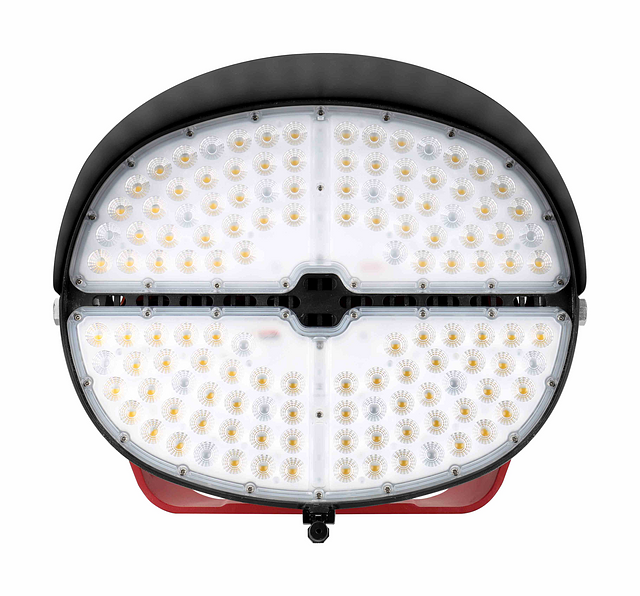

MSL01-Small Size-Black Top Visor-Front.png

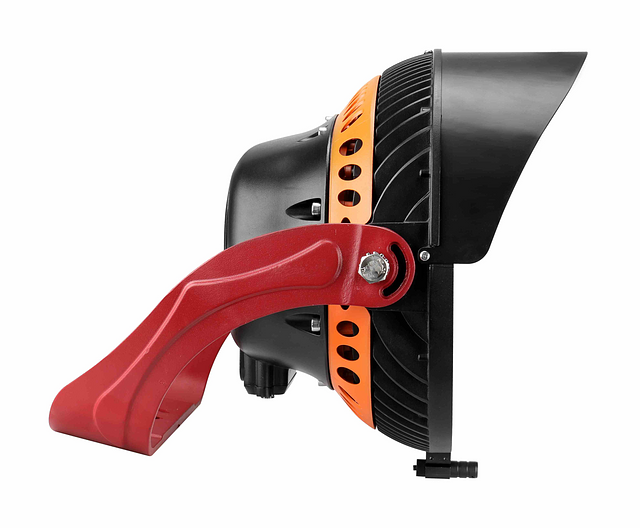

MSL01-Small Size-Black Top Visor-Side 2.png

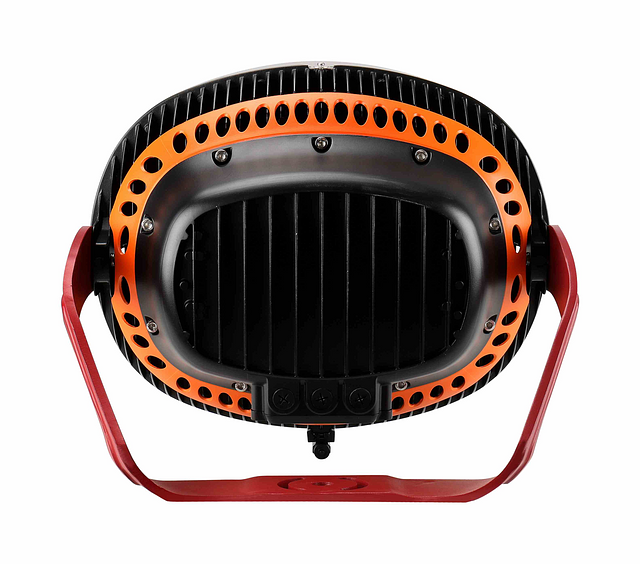

MSL01-small Size-White Top Visor-Back.png

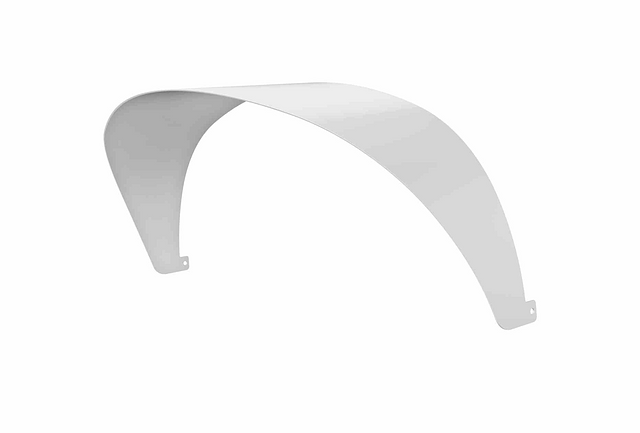

White Top Visor.png

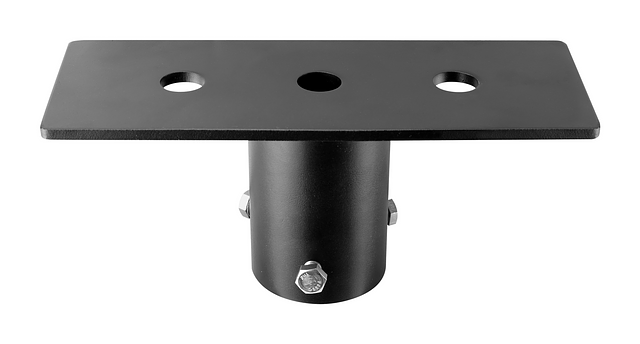

Yoke adaptor-side 01(Option).png

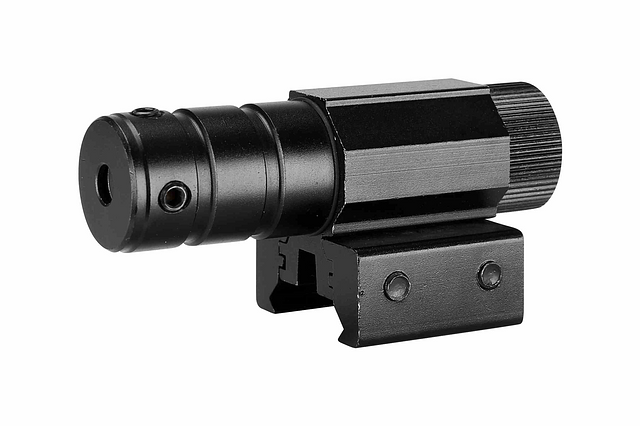

Aiming Sight (1).png

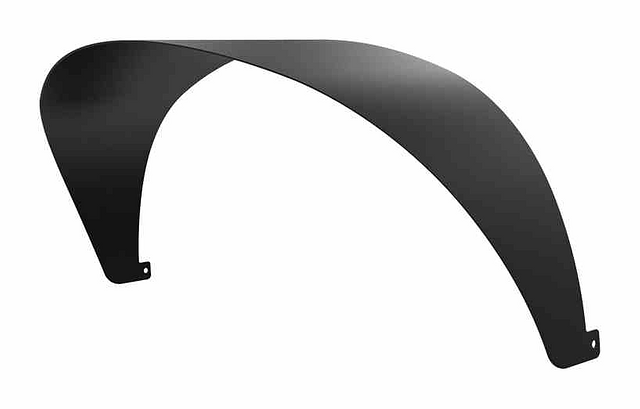

Black Top Visor.png

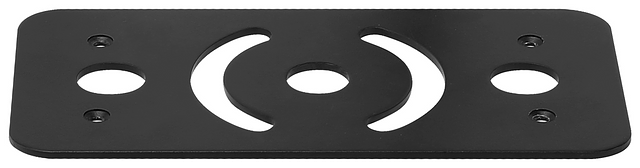

Mounting bracket plate(Option).pngLSL-5 Series
Sports Light
- Die-cast aluminum housing with corrosion-resistant powder coat finish
- High-efficiency LED arrays with precise optical distribution
- Adjustable mounting bracket for various aiming angles
- IP65-rated for outdoor wet location use
- Universal 100-277V AC input voltage compatibility
- Replaces traditional HID fixtures with LED technology for enhanced energy efficiency
The LSL-5 is a high output LED sports lighting solution designed for demanding outdoor applications. It delivers powerful illumination up to 118,000 lumens and supports long lasting performance with a rated LED lifespan of 100,000 hours. With a durable die cast aluminum housing, sealed polycarbonate lens, and integrated surge protection, this fixture is engineered to perform in tough outdoor conditions.
CCT
- 4000K
- 5000K
- 5700K
CRI
- 70
- 80
- 90
Color / Finish
- Black
Dimensions
- W: 23.8 In. H: 18.5 In.
- H: 16.3 In.
Dimming Protocol
- 0-10 V
Lamp Source
- LED
Listings
- UL
Lumens
- 72000
- 120000
Materials
- Die-Cast Aluminum
Mounting
- Trunnion
Ratings & Compliance
- DLC Premium
- IP65
- Wet
Voltage
- 120-277 V
- 277-480 V
- 347-480 V
Warranty
- 10 yr
Watts
- 505
- 850
