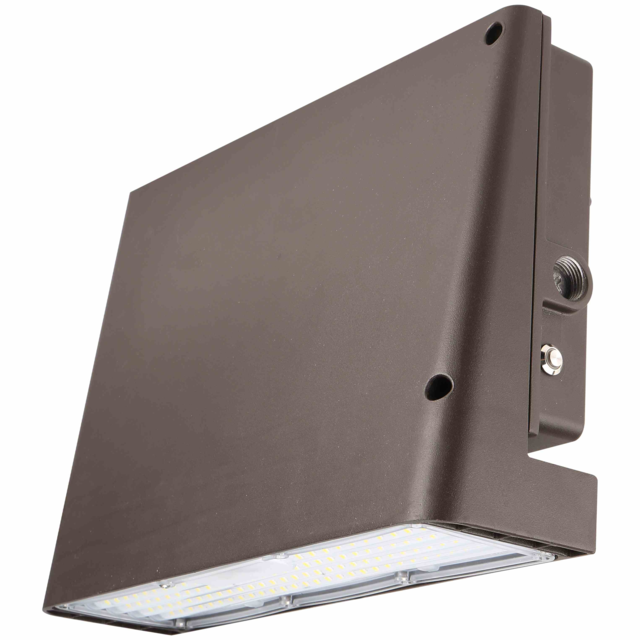

DOWN SeriesDOWN Series
Wall Pack
- Die-cast aluminum housing with a bronze powder coat finish
- Full cutoff optical design for minimized uplight and glare
- Surface mount installation compatible with standard wall box
- Integral LED driver with universal 120-277V input voltage
- Available in multiple lumen outputs and color temperature options
- Rated for wet locations with IP65 ingress protection rating
The DOWN full cutoff wall pack is available in three wattages with a specially designed Type IV wide forward throw optical distribution that is designed to replace HIS lighting systems of up to 175W MH or HPS. Die Cast aluminum housing with full cutoff front frame, integral heat sinking and driver compartment. Mounting heights of 12 to 25 feet can be used based on light level and uniformity requirements.
Color / Finish
- Dark Bronze
Dimensions
- W: 8.75 In. H: 5.75 In.
Lamp Source
- LED
Listings
- ETL
- UL
Materials
- Die-Cast Aluminum
Mounting
- Wall
Ratings & Compliance
- Buy American Act (BAA)
- DLC
- IP66
- Wet
Voltage
- 120-277 V
- 347-480 V
Warranty
- 5 yr
Watts
- 17
- 81
