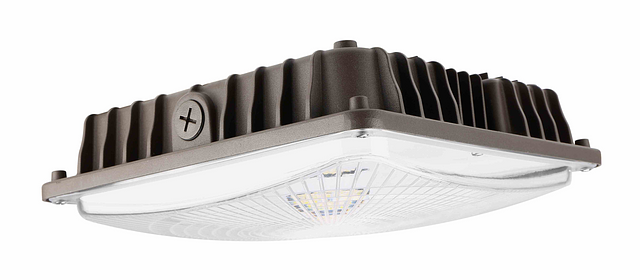

MCP07 side.png
MCP07-Back-CCT & Wattage Dial.png

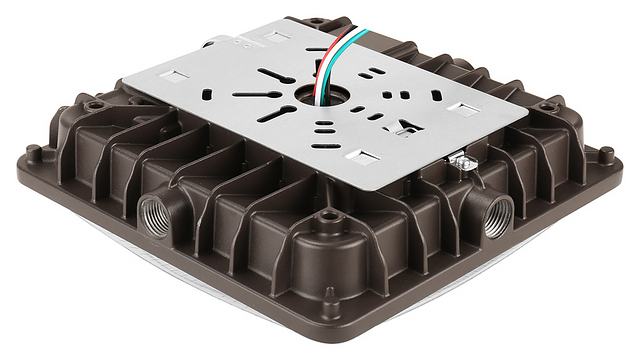

MCP07-Side 2.png
MCP07-With Built-in sensor-Front.png
MCP07-With Emergency Battery-Back.png

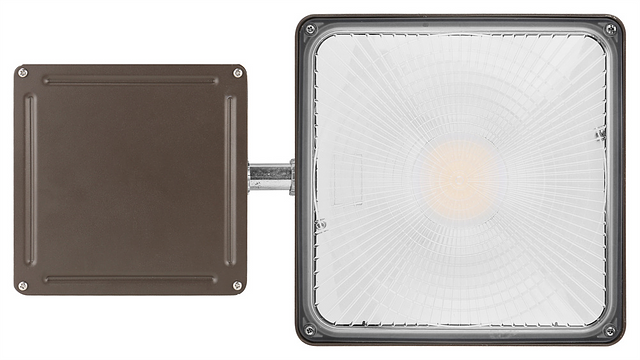

MCP07-With Emergency Battery-Front.png
MCP07-With Emergency Battery-Side 2.png

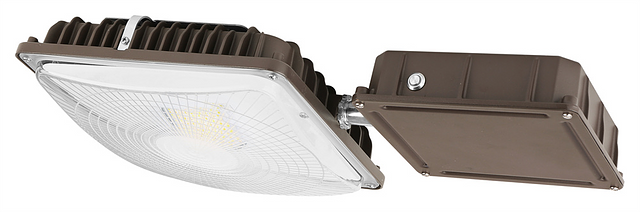

MCP07-With Emergency Battery-Side.png

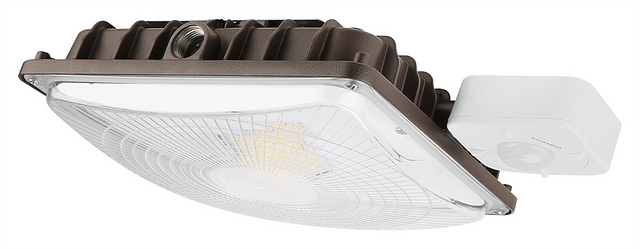

MCP07-With external sensor-Side.png

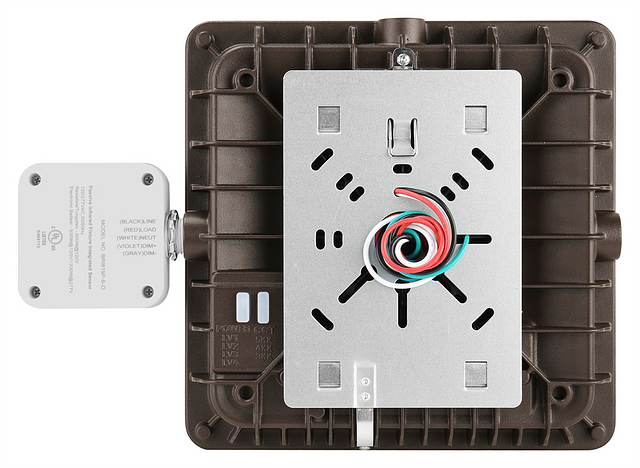

MCP07-With PIR sensor-Back.png

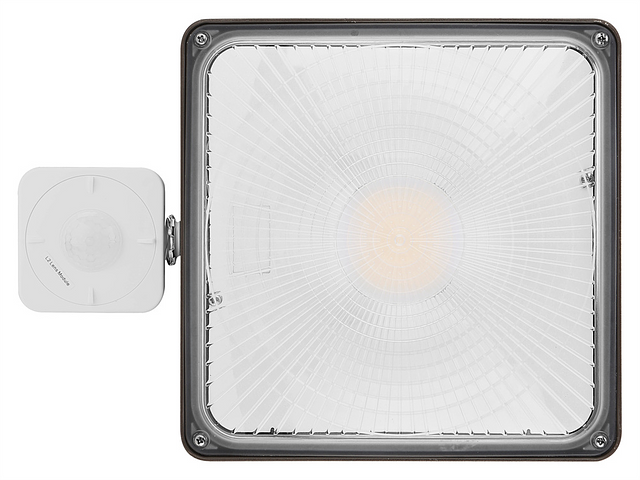

MCP07-With PIR sensor-Front.png
MCP07-With PIR sensor-Side 2.png

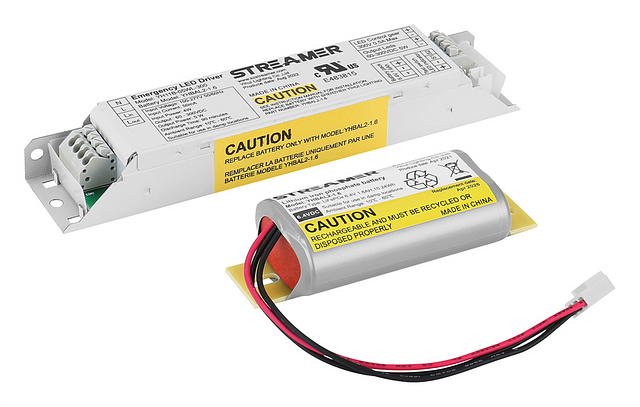

5W Emergency Battery.pngCPM2 Series
Canopy
- Rugged die-cast aluminum housing with bronze powder coat finish

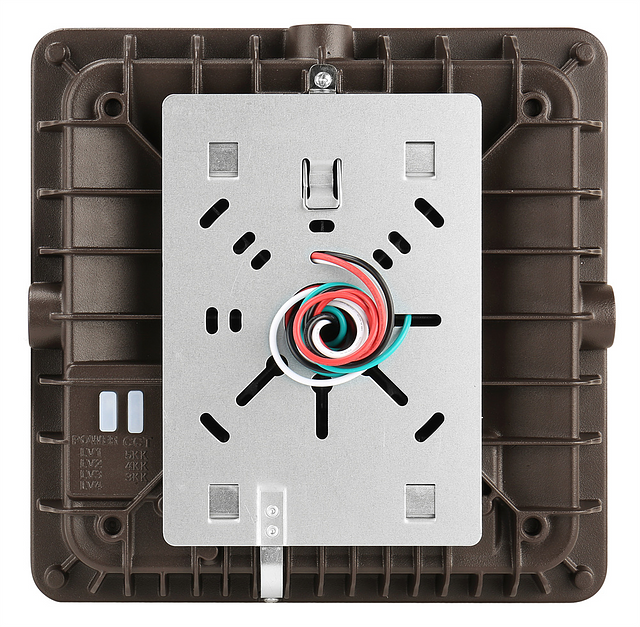

- Adjustable CCT switch selectable between 3000K, 3500K, 4000K, and 5000K
- Output adjustable via switchable lumen settings for tailored illumination levels
- Square-shaped canopy design suitable for canopy and outdoor ceiling applications

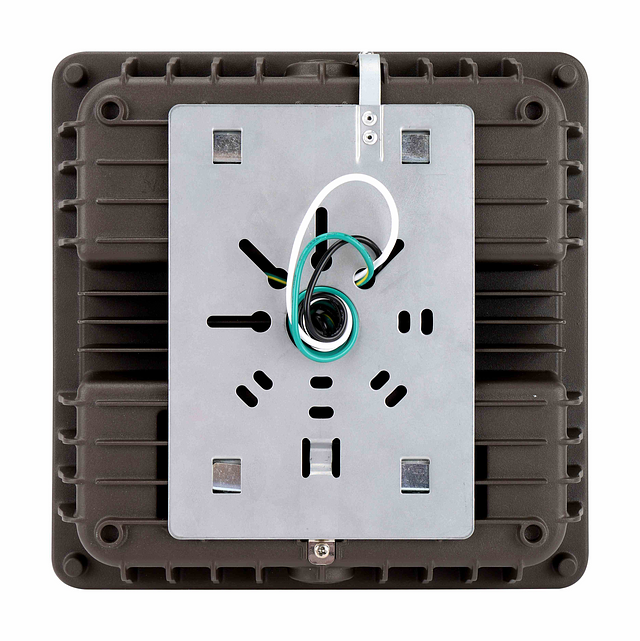

- Mounts directly to standard 4" junction box with included hardware
- Integral driver with 120-277V input voltage and 0-10V dimming interface

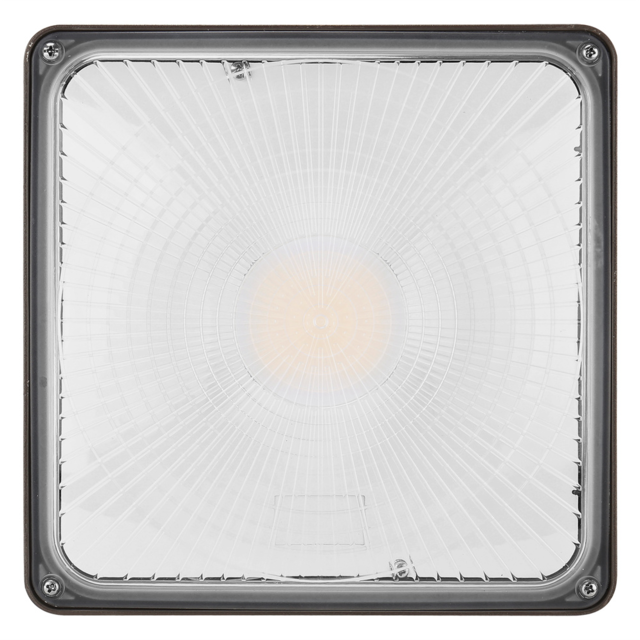

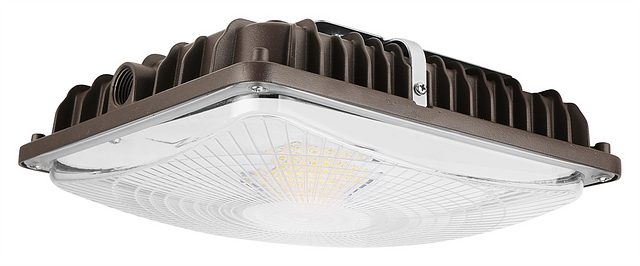

The CPM2 is a square LED canopy light with adjustable CCT and Lumen output. Estimated 50,000-hour lifespan. The fixture die-cast aluminum housing with corrosion resistant powder coating for extended lifespan and protection.
CCT
- 3000K
- 4000K
- 5000K
CRI
- 70
Color / Finish
- Black
- Dark Bronze
- White
Controls Options

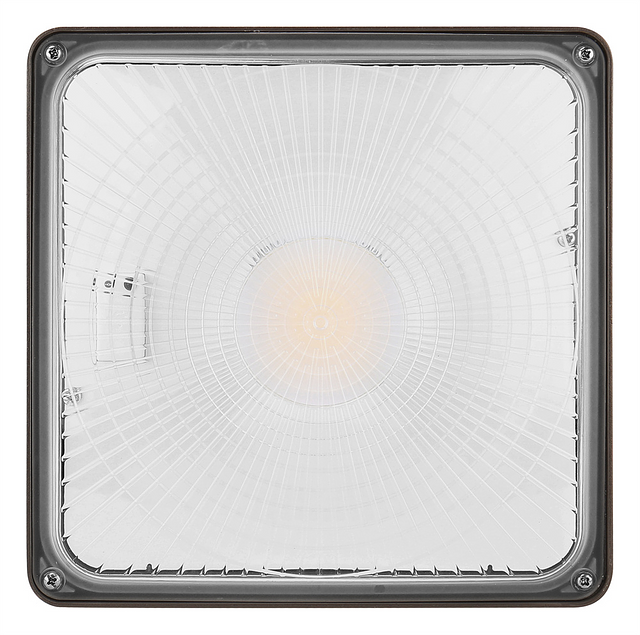

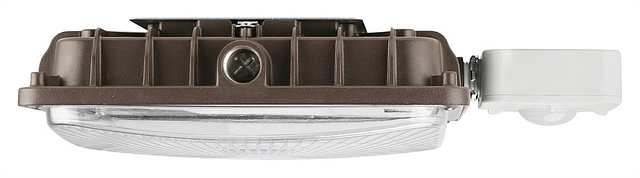

- Occupancy Sensor
- Photocell
Dimensions
- W: 11.52 In.
- L: 9.52 In. W: 9.52 In. H: 3.8 In.
Dimming Protocol
- 0-10 V
Emergency Options

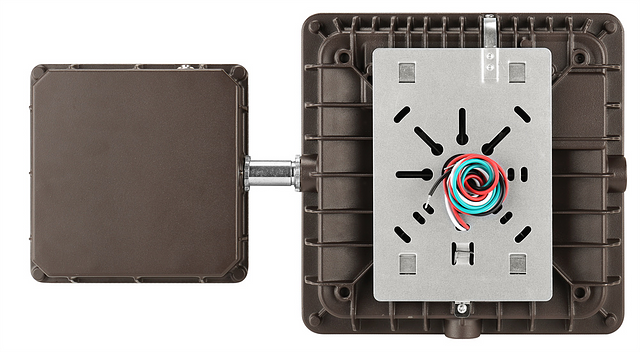

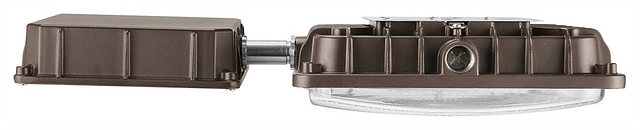

- Emergency Battery Backup
Lamp Source
- LED
Listings
- UL
Lumens
- 3700
- 16500
Materials
- Die-Cast Aluminum
Ratings & Compliance
- DLC Premium
- Wet
Voltage
- 120-277 V
- 120-347 V
Warranty
- 5 yr
Watts
- 60
- 110
