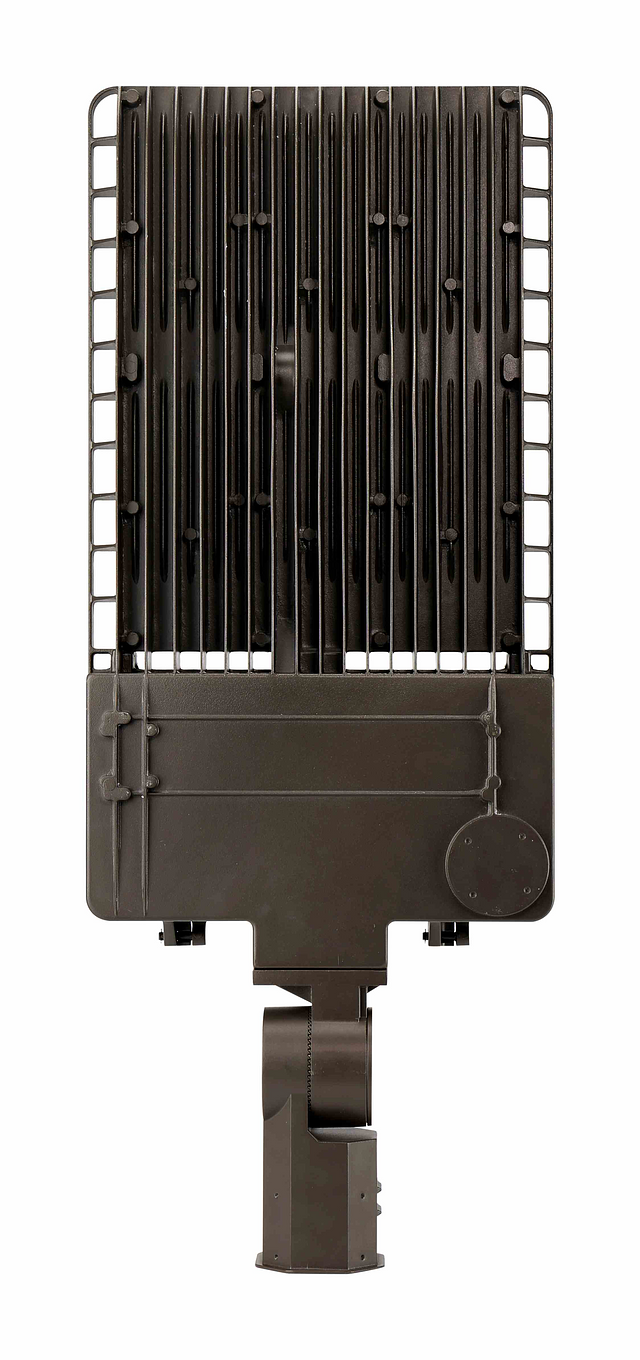

MAL05-Large Size-Slipfitter-Back.png

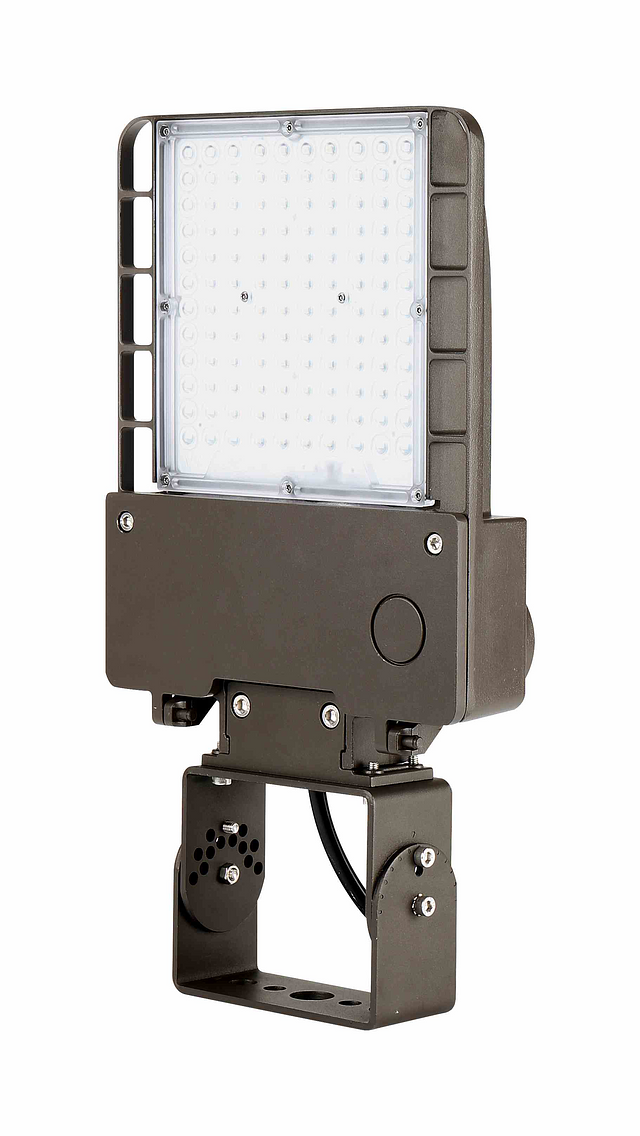

MAL05-Small Size-YOKE-Side 1.png

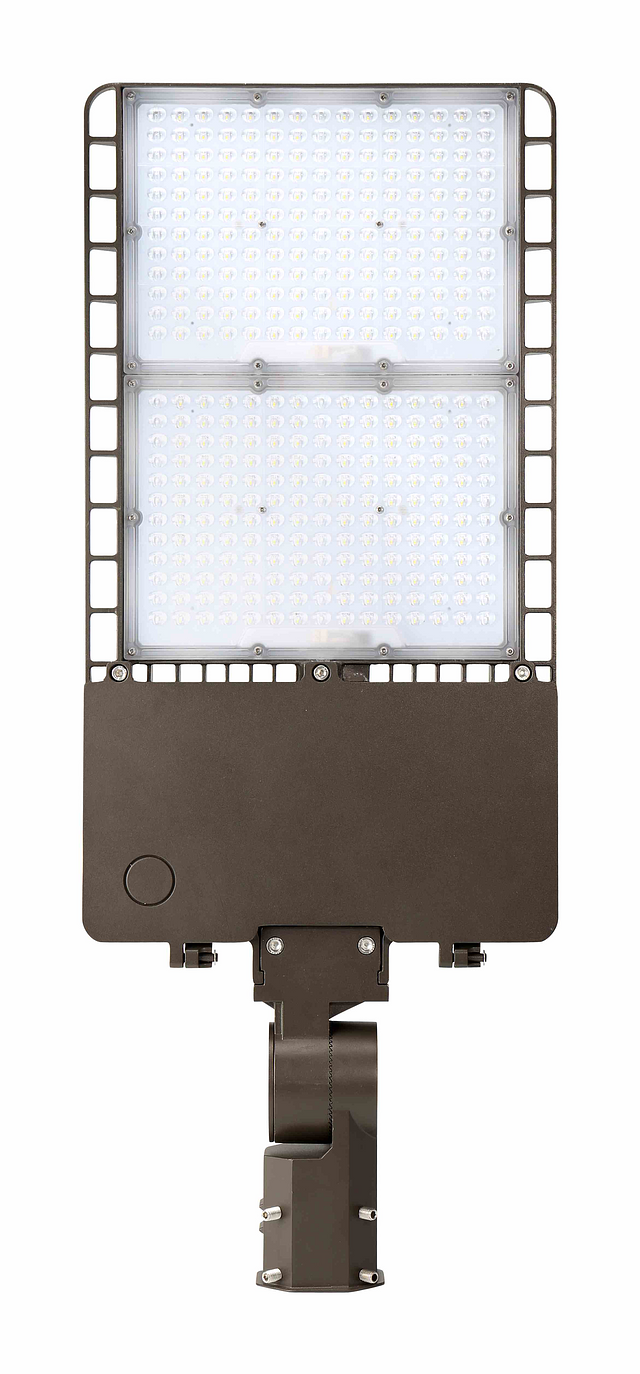

MAL05-Large Size-Slipfitter-Front.png

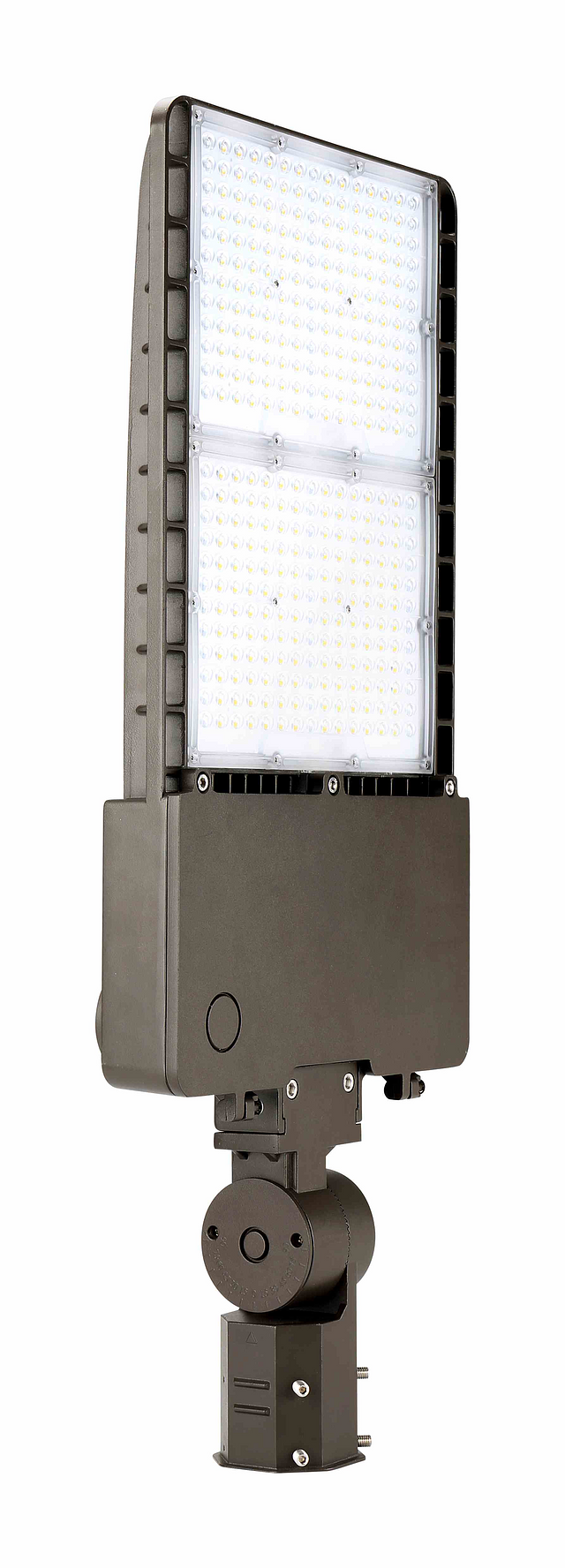

MAL05-Large Size-Slipfitter-Side 1.png

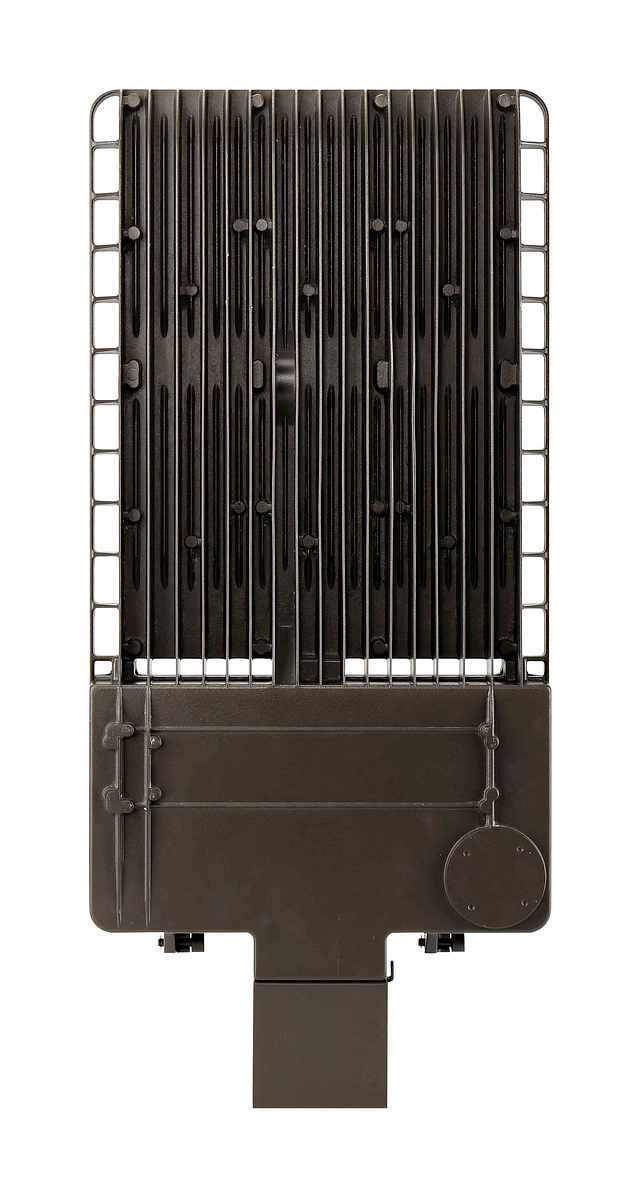

MAL05-Large Size-Square-Back.png

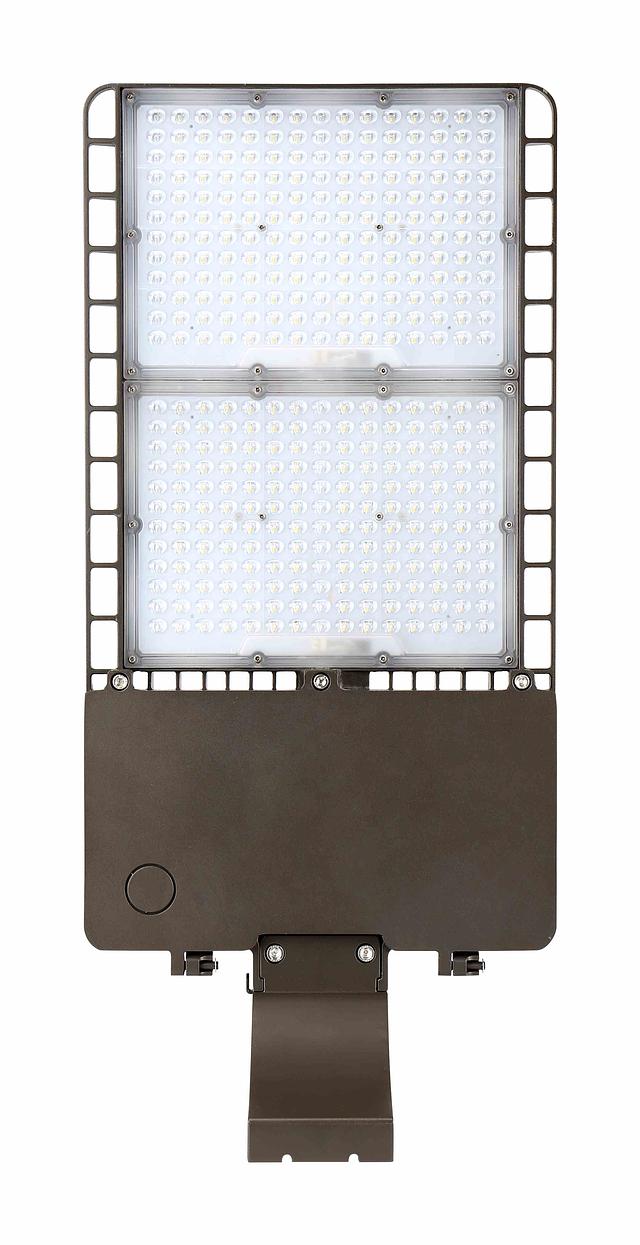

MAL05-Large Size-Square-Front.jpg

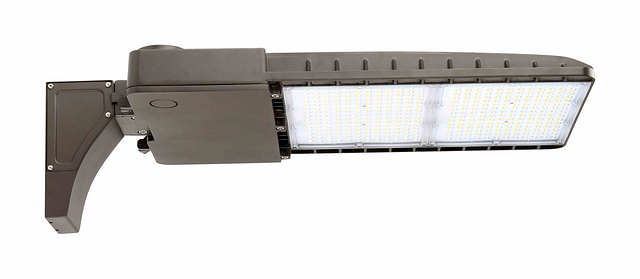

MAL05-Large Size-Square-Side 1.png

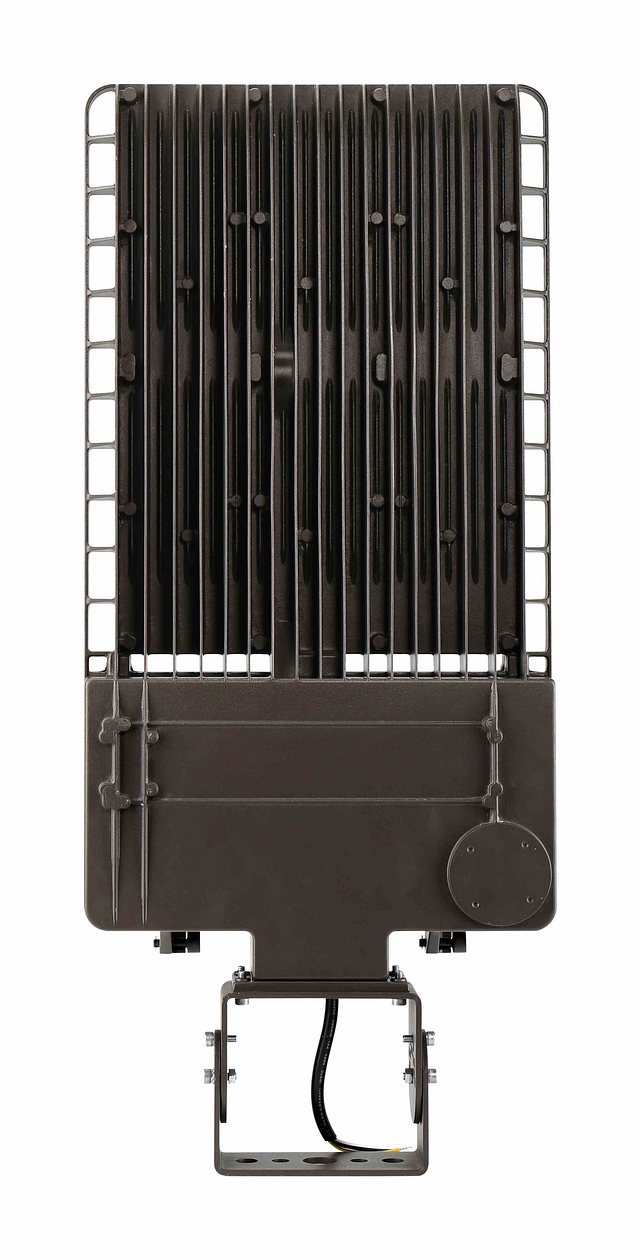

MAL05-Large Size-YOKE-Back.png

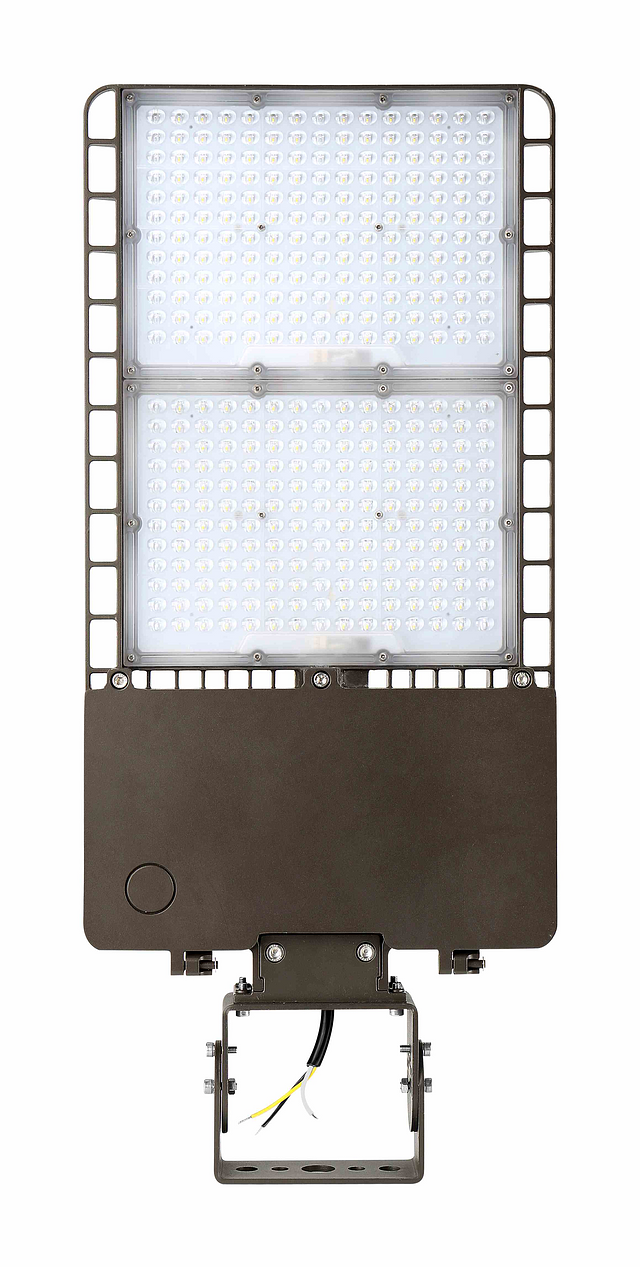

MAL05-Large Size-YOKE-Front.png

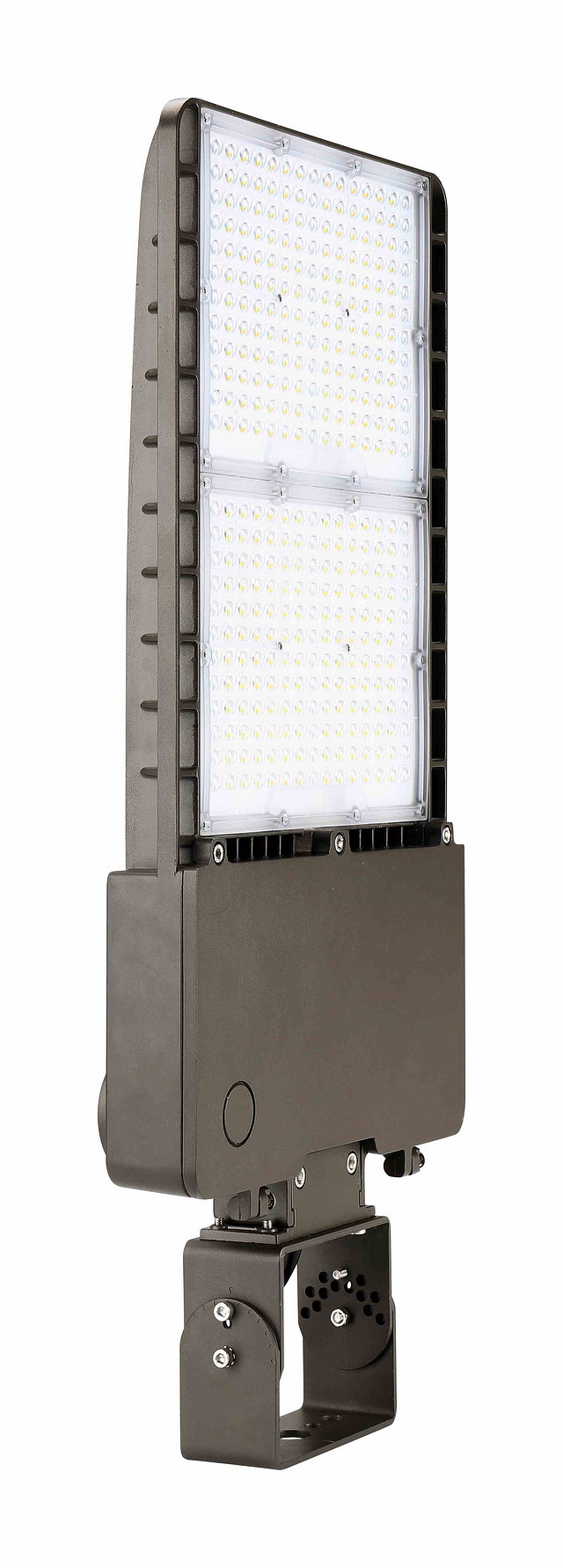

MAL05-Large Size-YOKE-Side 1.png

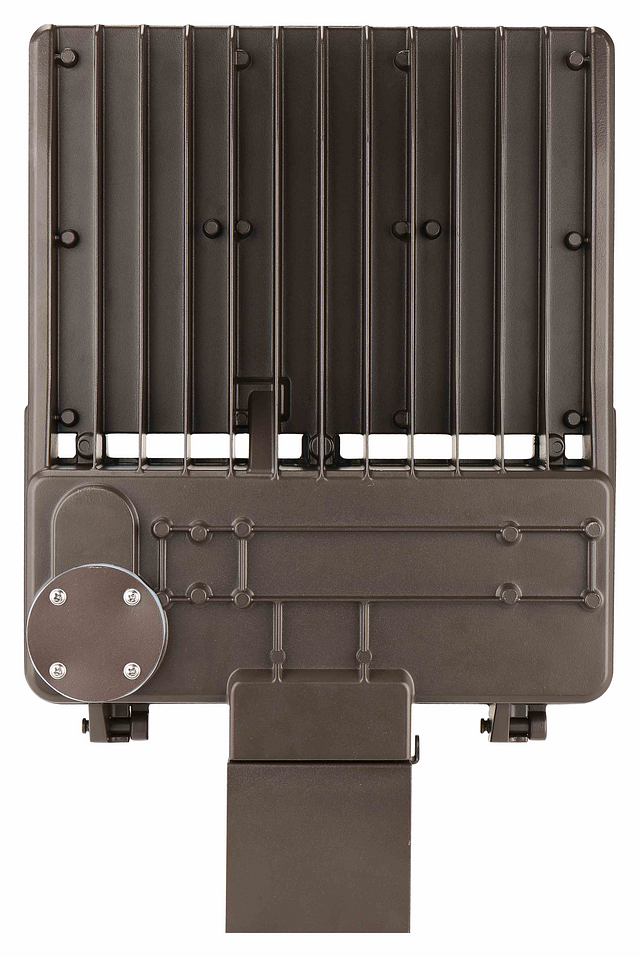

MAL05-Medium Size-Square-Back.png

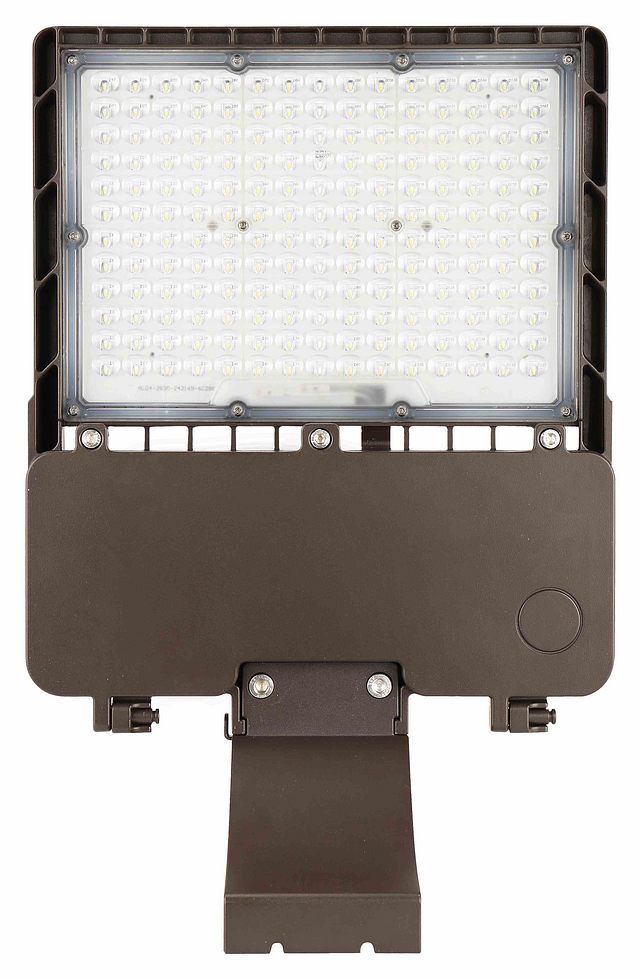

MAL05-Medium Size-Square-Front.png

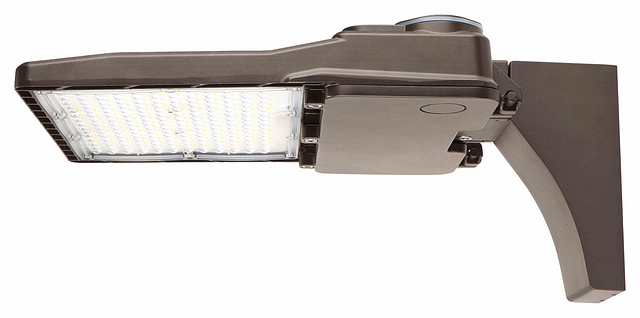

MAL05-Medium Size-Square-Side 1.png

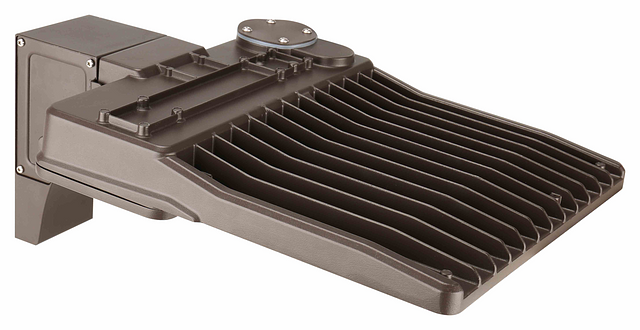

MAL05-Medium Size-Square-Side 4.png

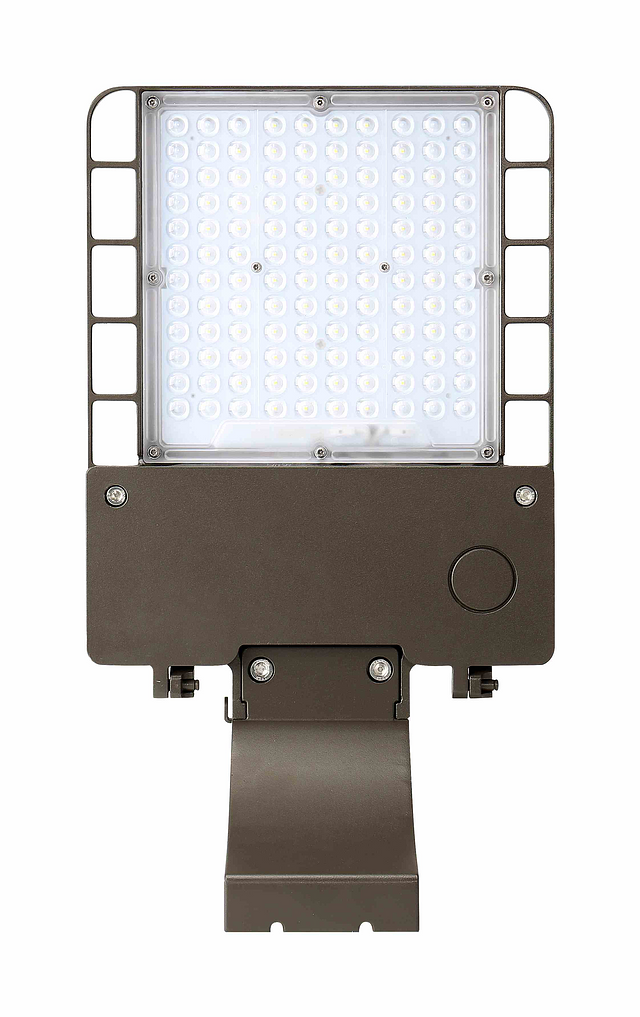

MAL05-Small Size--Square-Front.png

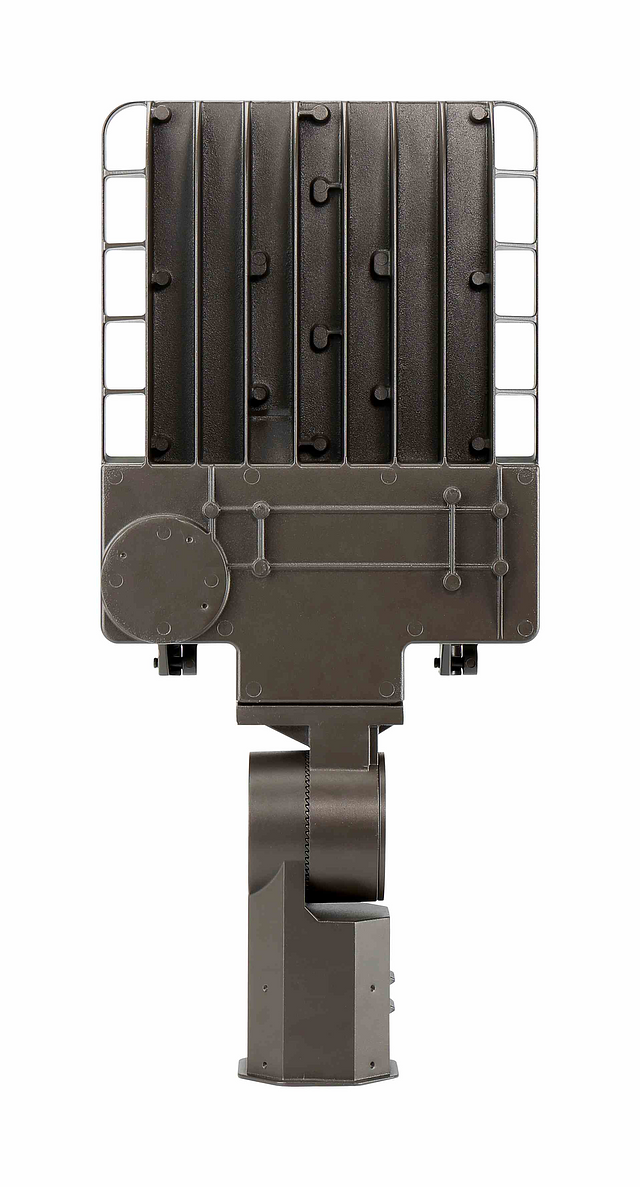

MAL05-Small Size-Slipfitter-Back.png

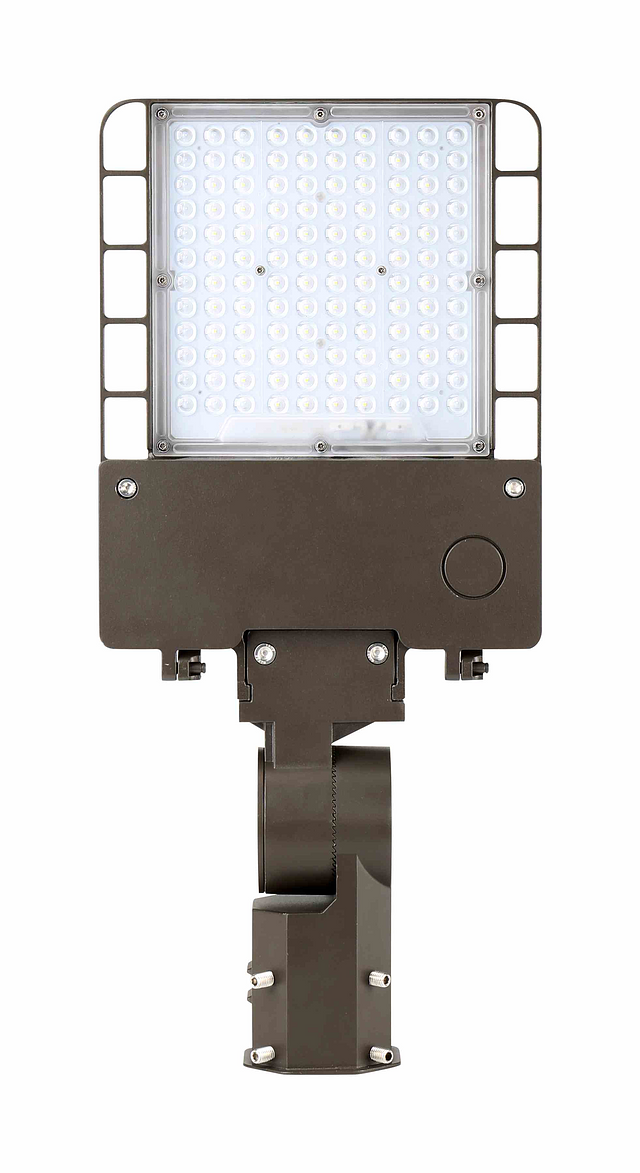

MAL05-Small Size-Slipfitter-Front.png

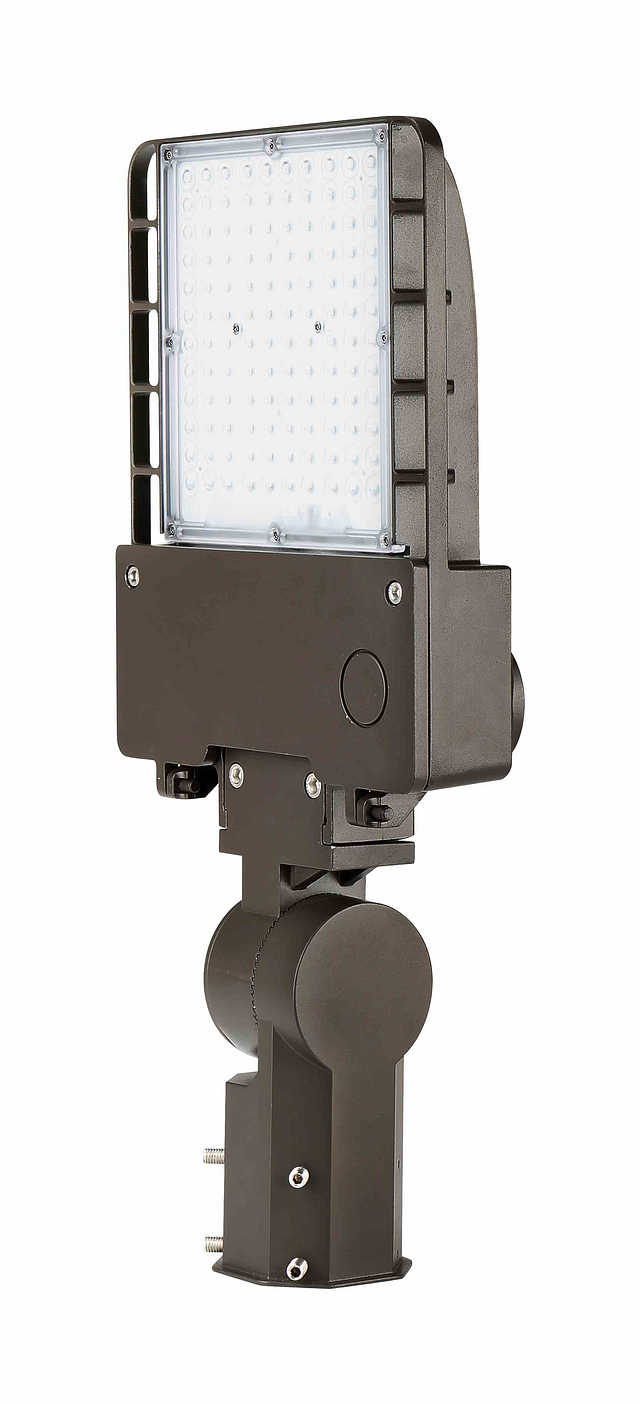

MAL05-Small Size-Slipfitter-Side 1.png

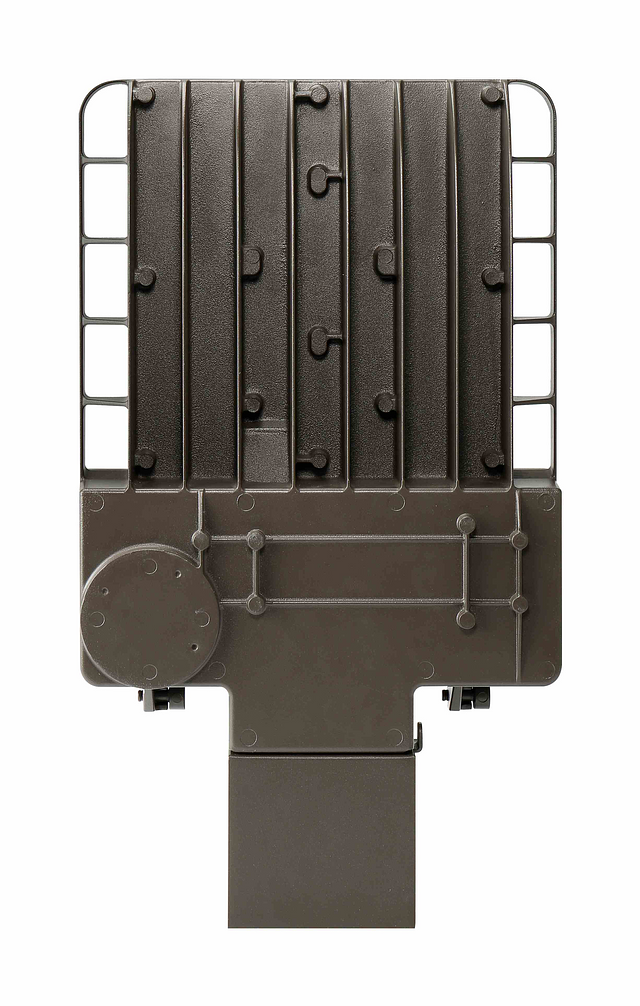

MAL05-Small Size-Square-Back.png

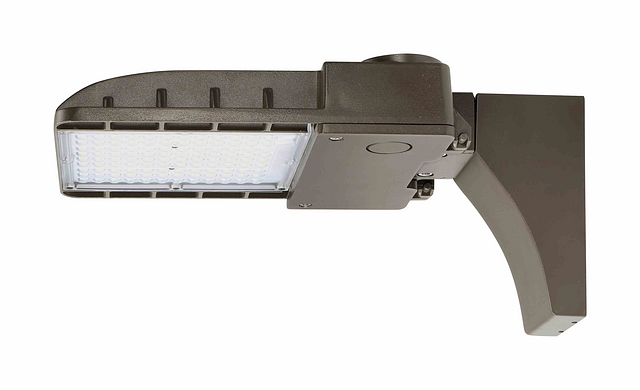

MAL05-Small Size-Square-Side 1.png

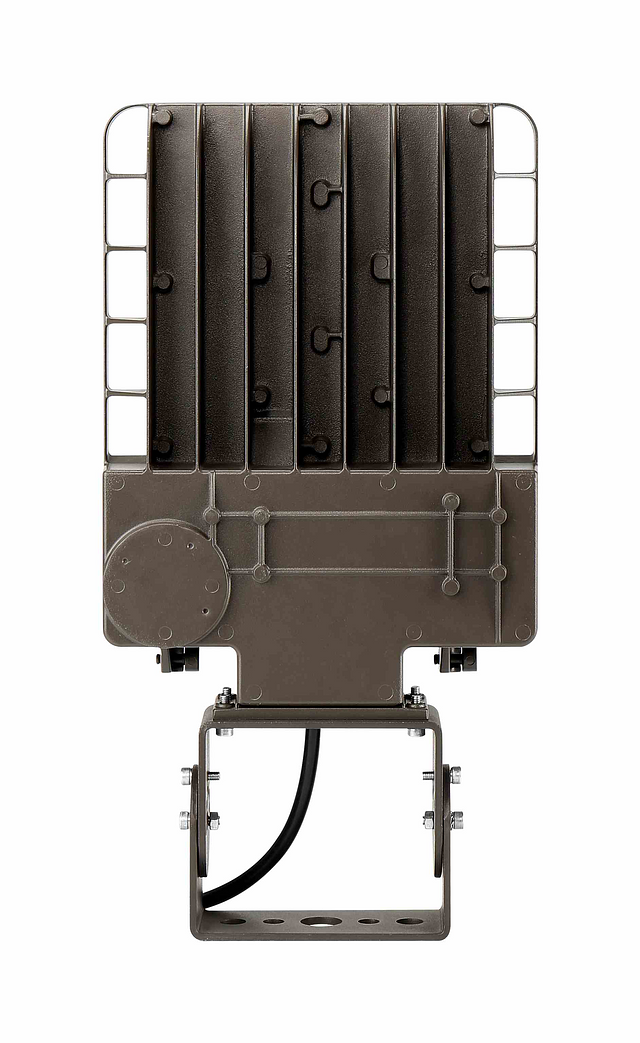

MAL05-Small Size-YOKE-Back.png

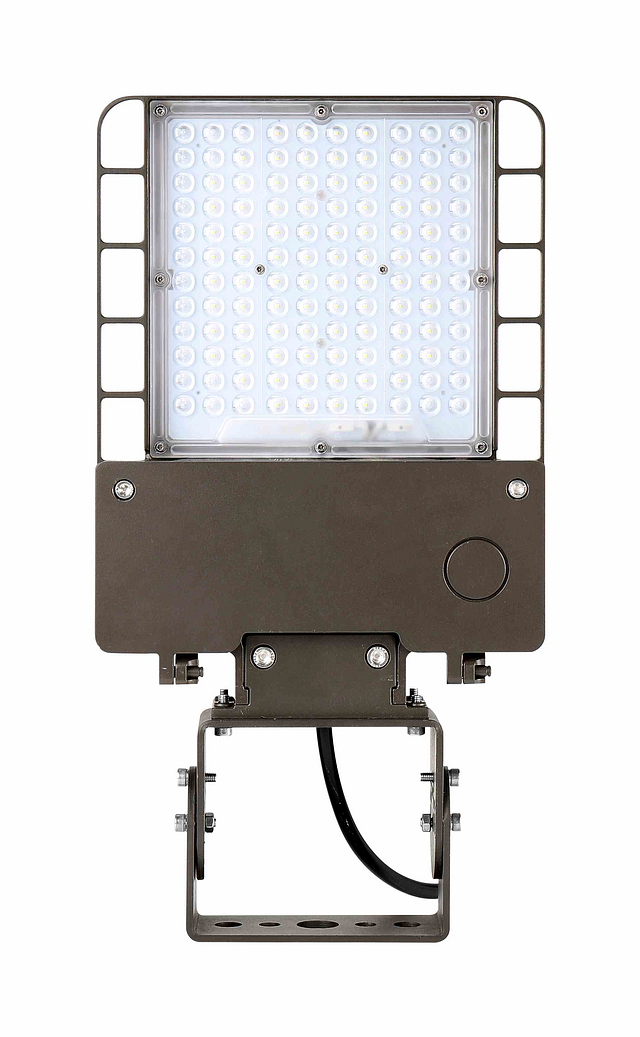

MAL05-Small Size-YOKE-Front.pngEZC2 Series
Area Light
- Die-cast aluminum housing with powder coat finish
- Flat glass lens with photometric options for precise light distribution
- Mounting compatibility with standard 2 3/8" tenon or slip fitter accessories
- 120-277V universal voltage input with 0-10V dimming standard
- IP65 wet location rated with IK08 impact resistance
- Available in multiple wattages and color temperatures for customizable applications
The EZC2 is a multi-purpose area light is a rugged one-piece, die-cast aluminum housing secures the thermally conductive LED panel and electric chamber. Low profile, 3G vibration rated compact design minimizes wind load requirements. Housing is completely sealed against moisture and environmental contaminants.
CCT
- 4000K
- 5000K
CRI
- 70
Color / Finish
- Black
- Dark Bronze
- Gray
- White
Controls Options
- Microwave Sensor
- Occupancy Sensor
- Photocell
Dimming Protocol
- 0-10 V
Distribution
- Type III
- Type IV
- Type V
Lamp Source
- LED
Listings
- UL
Lumens
- 13900
- 42000
Materials
- Die-Cast Aluminum
Mounting
- Slip Fitter
- Trunnion
- Wall
Ratings & Compliance
- DLC Premium
- Wet
Voltage
- 120-277 V
- 347-480 V
Warranty
- 5 yr
Watts
- 100
- 300
