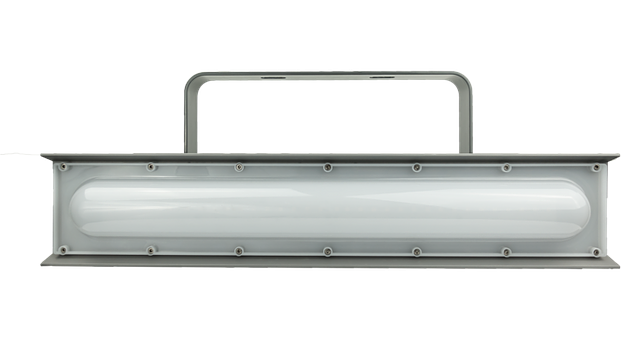

H Series 2ft 1.png

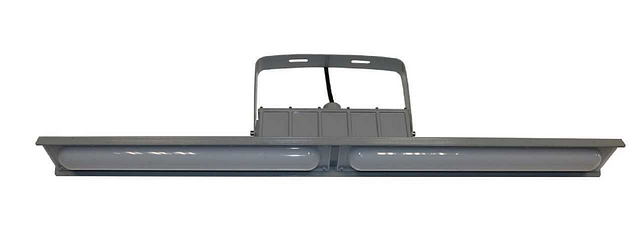

H Series 4ft 3.png

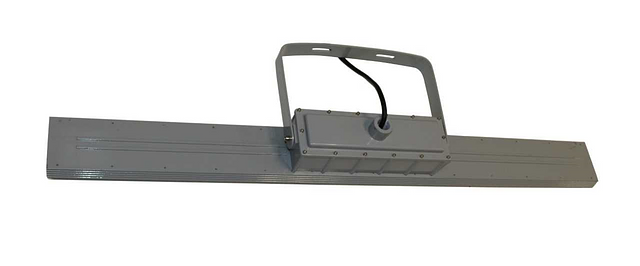

H Series 4ft 5.png

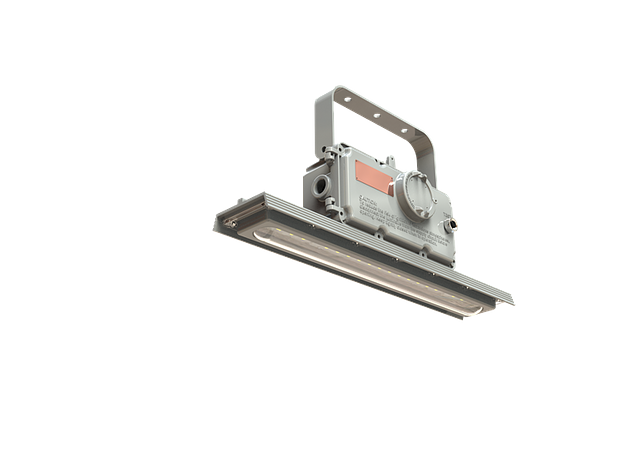

H2.6 Convex lens.png

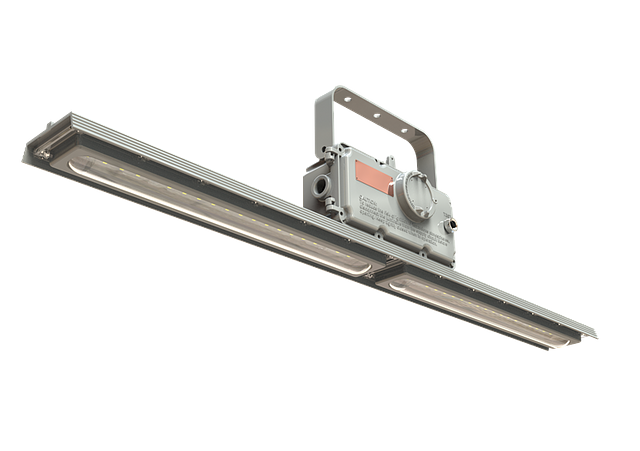

H4.5 convex lens.pngPluto Series
LED Linear
- Die-cast aluminum housing with corrosion-resistant powder coat finish
- Tempered glass lens with stainless steel dogging for secure closure
- Class I, Division 1 & 2, Class II, Division 1 & 2, and Class III hazardous location certification
- Available in lengths of 2 ft, 4 ft, and 8 ft configurations
- Universal voltage driver with 0-10V dimming capability
- Multiple mounting options including surface mount, pendant mount, and chain mount
CCT
- 3000K
- 4000K
- 5000K
- 6000K
CRI
- 70
- 80
Color / Finish
- Grey
Controls Options
- Motion Sensor
- Photocell
Dimming Protocol
- 1-10 V
Dimming Range
- 10%
Efficacy
- 140
Emergency Options
- Emergency Battery Backup
Listings
- CSA
- UL
Materials
- Die-Cast Aluminum
Mounting
- Ceiling
- Clamp
- Pendant
Ratings & Compliance
- Buy American Act (BAA)
Warranty
- 5 yr
- 10 yr
Watts
- 20
- 80
