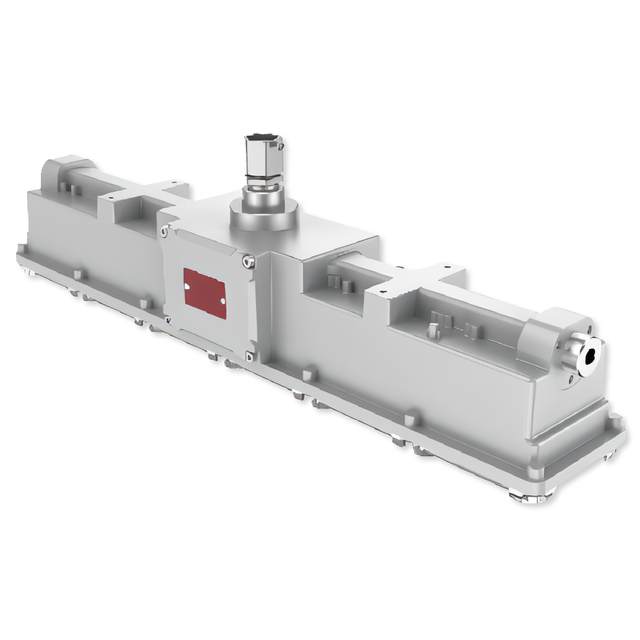

LIH Series

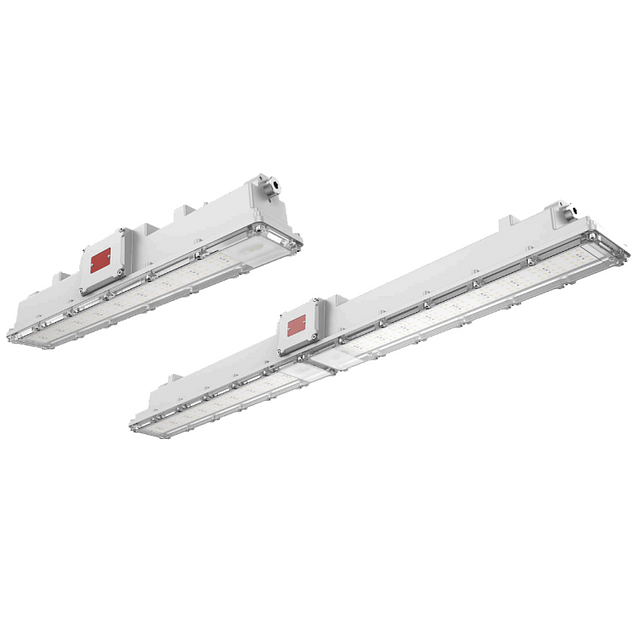

Screenshot 2026-02-18 at 4.48.35 PM.png

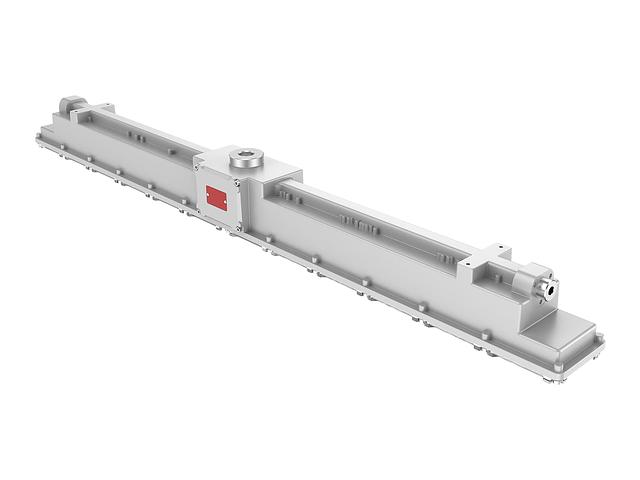

HA06-2.PNGLIH Series
LED Linear
- Nonmetallic fiberglass reinforced polyester housing for corrosion resistance
- UL844 and Class I, Division 1 & 2 hazardous location rated
- Prismatic borosilicate glass lens for optimal light distribution
- Multiple mounting configurations including pendant, surface, and chain mount
- Integral LED driver with 120-277V input voltage compatibility
- Available in lengths of 4 ft and 5 ft with various lumen outputs and color temperatures
High Efficiency delivers up to 160 lm/W with lumen packages ranging from 4800 lm to 16000 lm. Supports various installation methods including ceiling mount, trunnion mount, hoop mount, loop mount, and pendant mount. Equipped with 9W emergency lighting for 1.5 hours. Waterproof, dustproof, anti-corrosion, and shock resistant design.
CCT
- 2000K
- 2200K
- 2500K
- 2700K
- 3000K
- 3500K
- 4000K
- 4500K
- 5000K
- 5700K
- 6500K
CRI
- 70
- 80
- 90
Color / Finish
- Grey
Controls Options
- Motion Sensor
- Photocell
Dimensions
- H: 6.99 In.
Dimming Protocol
- 1-10 V
Dimming Range
- 10%
EPA Rating
- .07
- .14
Efficacy
- 160
Emergency Options
- Emergency Battery Backup
Lamp Source
- LED
Listings
- CSA
- UL
Lumens
- 4800
- 16000
Materials
- Fiberglass
- Polycarbonate
Mounting
- Ceiling
- Chain
- Clamp
- Pendant
- Trunnion
Ratings & Compliance
- Class I Div II
- Class II Div II
- Class III
- IK08
- IP66
- NEMA 4X
Shape
- Rectangular
Voltage
- 100-277 V
- 277-480 V
Warranty
- 5 yr
- 10 yr
Watts
- 30
- 70
Weight
- 7
- 7.3
- 11
